Timing Cover & Water Pump Installation Stage 1 | Small Block Ford 302

In these steps we will set the timing cover and water pump into place. Keep in mind that this is not a final installation because a lot of the bolts used in this process will be determined by the accessory bracketry used later on in the build. Primarily, you want to install these components to set the oil pan and gasket for final installation. For this build, I used a Dorman aluminum timing cover and Ford Racing water pump. I was a little disappointed to find that the water pump is made in china. I will trust that Ford Racing built a quality product. The timing cover comes with the gasket and the front seal (everything you need). The water pump also comes with the gasket. You will need a set of ARP bolts to complete this stage of the installation.

PART NUMBERS:

TIMING COVER (DORMAN) includes gasket & seal: 635-102 ~ $86.97 SUMMIT RACING Purchase Here
BOLT KIT: TIMING COVER & WATER PUMP (ARP): 154-1504 ~ $25.42 SUMMIT RACING Purchase Here
WATER PUMP (FORD RACING) INCLUDES GASKET: M-8501-C50 ~ $43.97 SUMMIT RACING Purchase Here

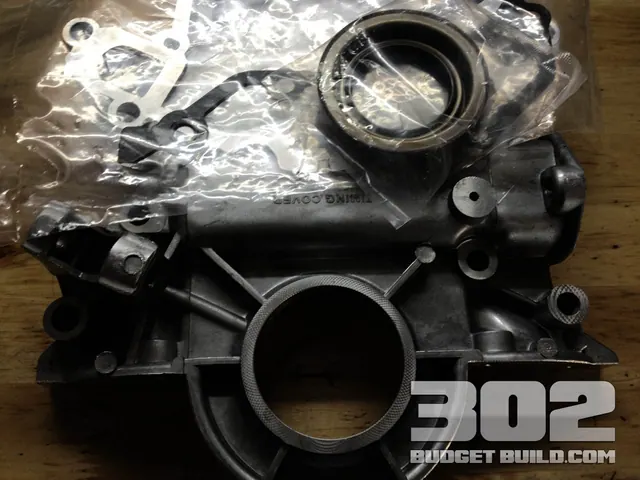

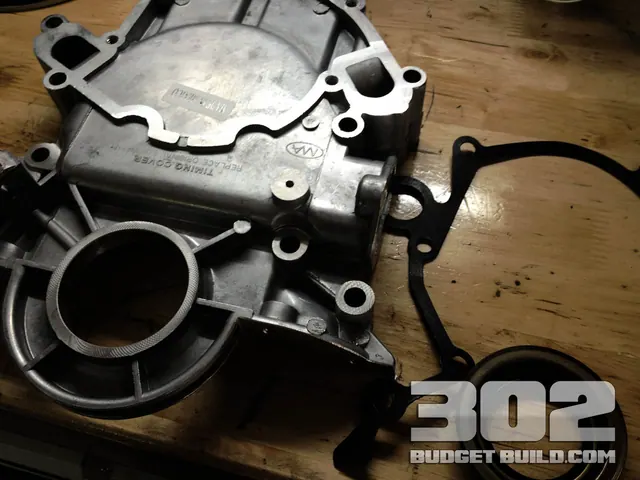

Timing Cover & Water Pump Installation Stage 1 | Small Block Ford 302

Timing Cover & Water Pump Installation Stage 1 | Small Block Ford 302



Timing Cover & Water Pump Installation Stage 1 | Small Block Ford 302

Timing Cover & Water Pump Installation Stage 1 | Small Block Ford 302

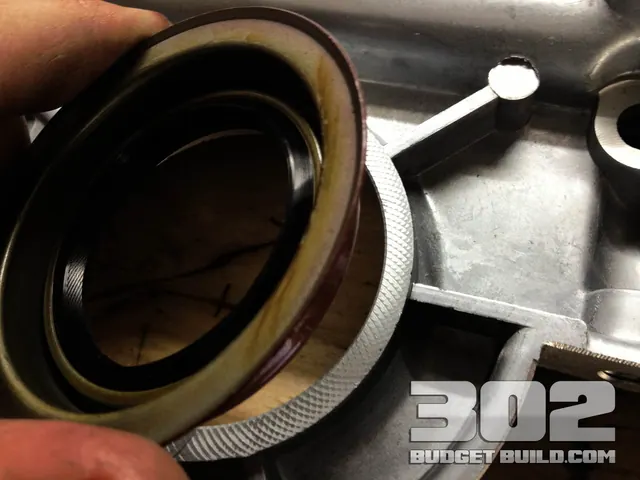

Timing cover front seal shown

Timing cover front seal shown



Timing cover front seal shown

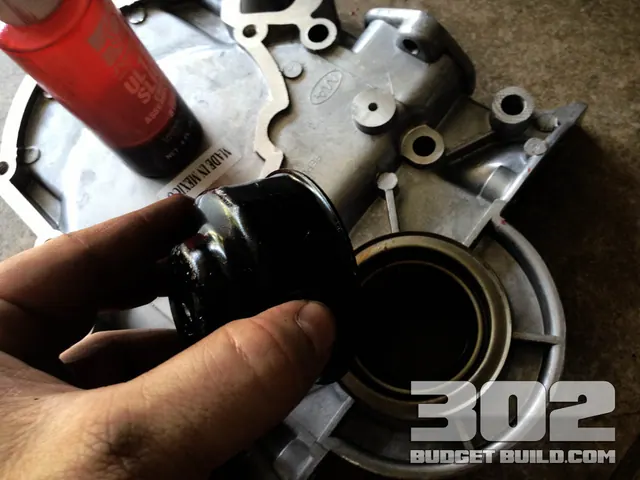

Timing cover front seal shown. Use an oil filter wrench to evenly distribute pressure while setting the seal.



Timing cover front seal shown

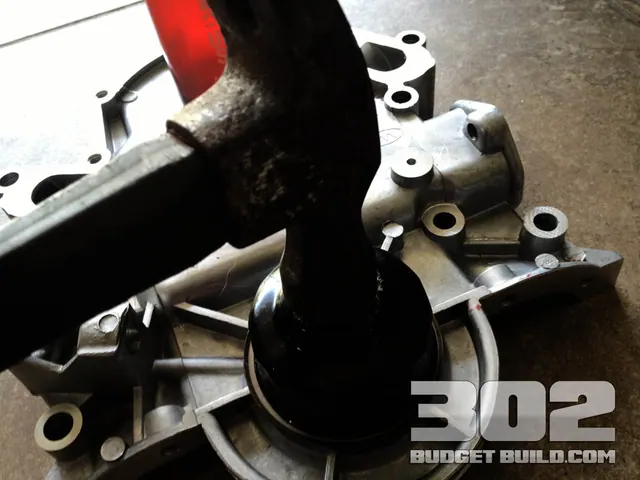

Timing cover front seal shown. Hammer into place evenly.

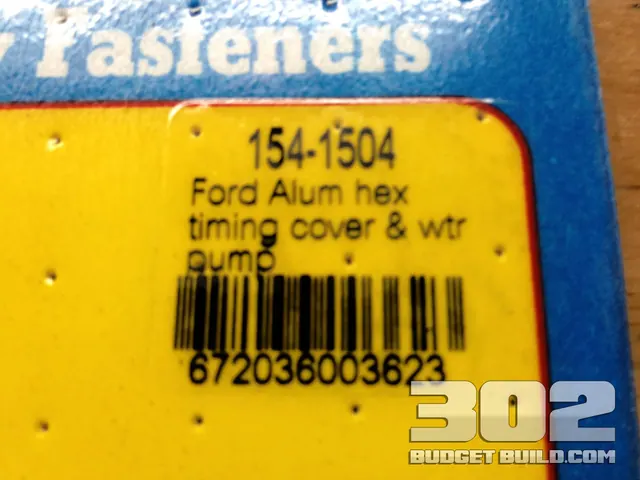

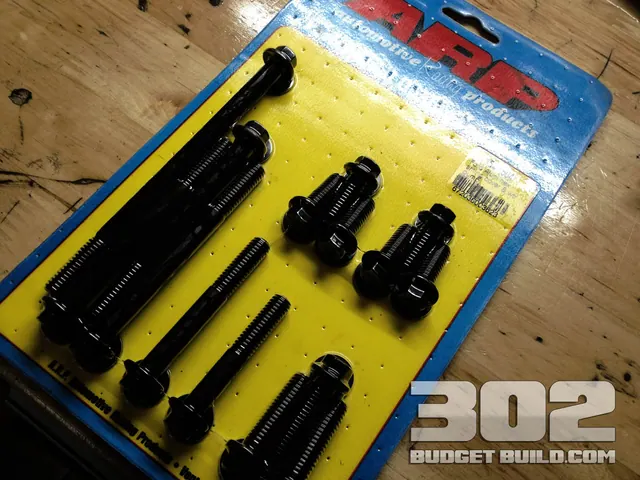

ARP bolt kit part number 154-1504

ARP bolt kit part number 154-1504



ARP Timing Cover & Water Pump Bolt Kit.

ARP Timing Cover & Water Pump Bolt Kit.



ARP Timing Cover & Water Pump Bolt Kit.

ARP Timing Cover & Water Pump Bolt Kit.

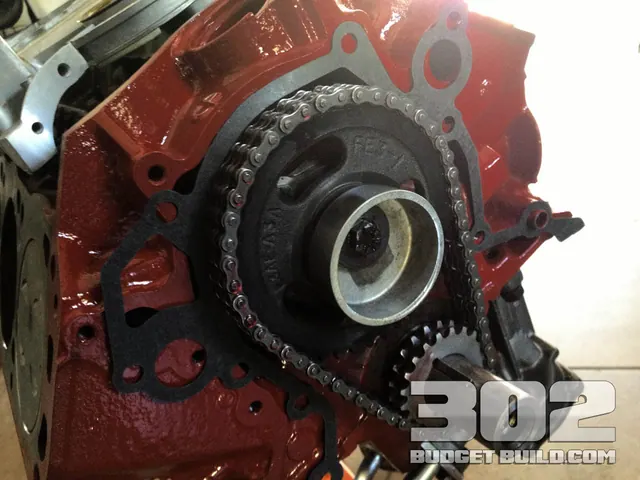

Gasket for timing cover mocked up into place on dowel.

Gasket for timing cover mocked up into place on dowel.

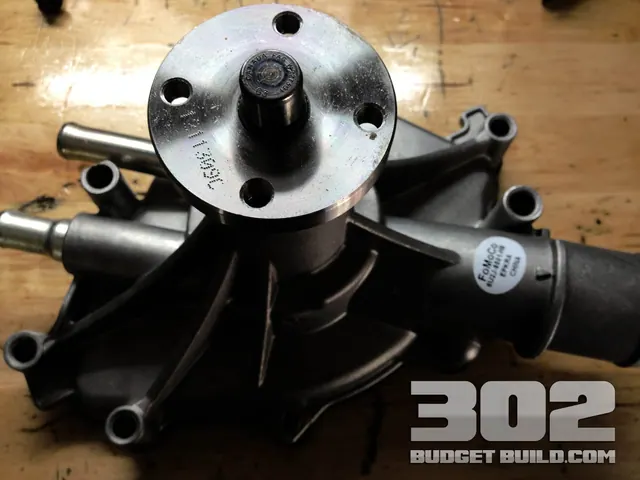

Ford Racing water pump.

Ford Racing water pump.

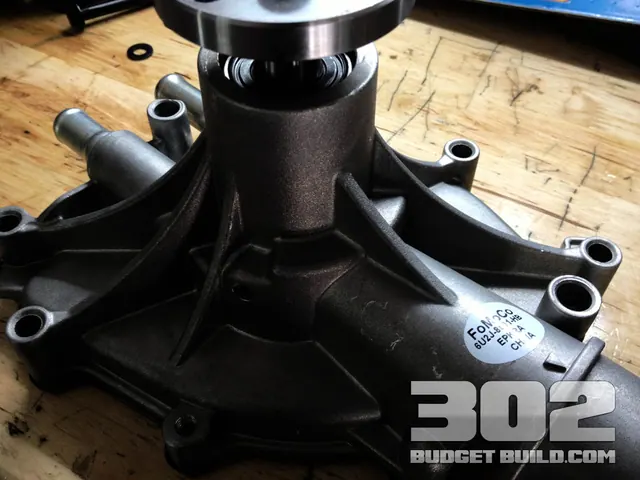

Ford Racing water pump. Sticker illustrates FoMoCo MADE IN CHINA... Oh boy...

Ford Racing water pump. Sticker illustrates FoMoCo MADE IN CHINA… Oh boy…

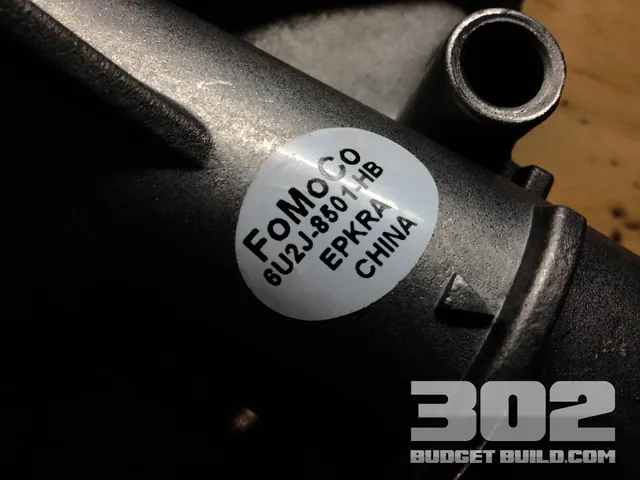

Ford Racing water pump. Sticker illustrates FoMoCo MADE IN CHINA... Oh boy...

Ford Racing water pump. Sticker illustrates FoMoCo MADE IN CHINA… Oh boy…

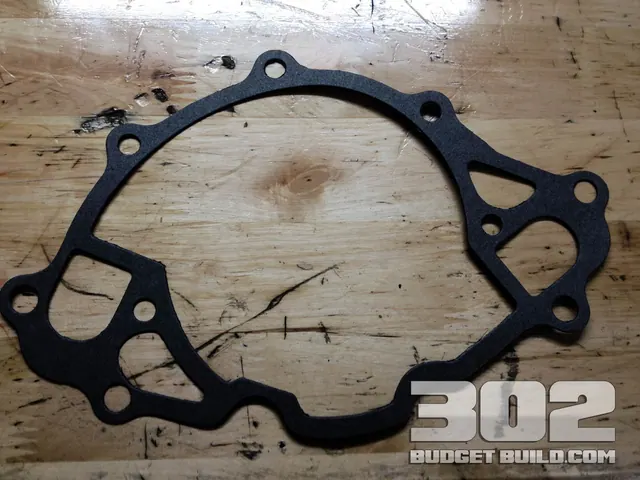

Gasket for water pump.

Gasket for water pump.



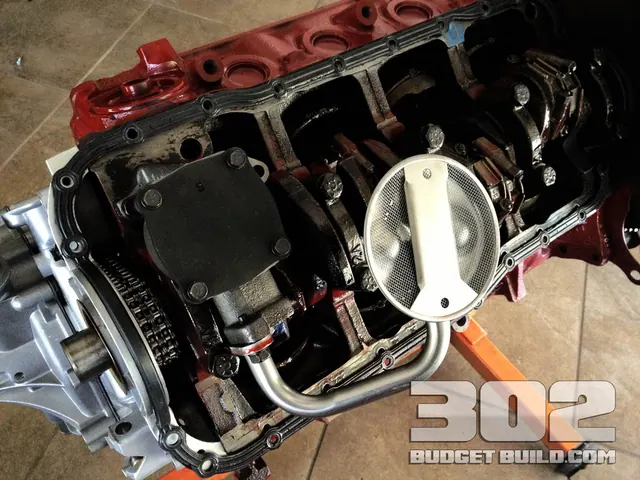

Timing cover shown mocked up onto the engine block

Timing cover shown mocked up onto the engine block

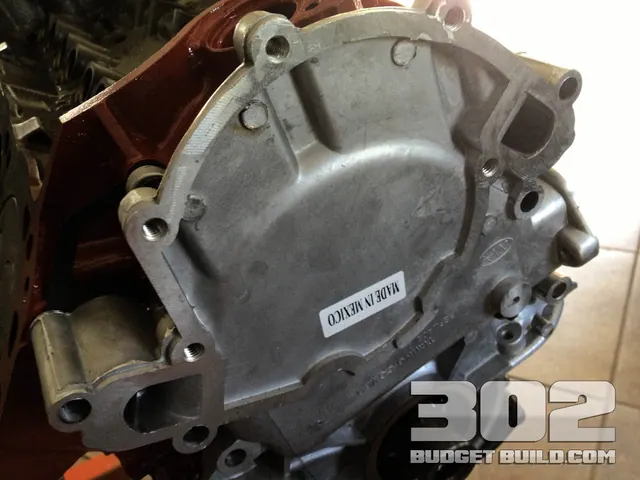

Timing cover shown mocked up onto the engine block

Timing cover shown mocked up onto the engine block



Box for water pump with part number: m-8501-c50

Box for water pump with part number: m-8501-c50

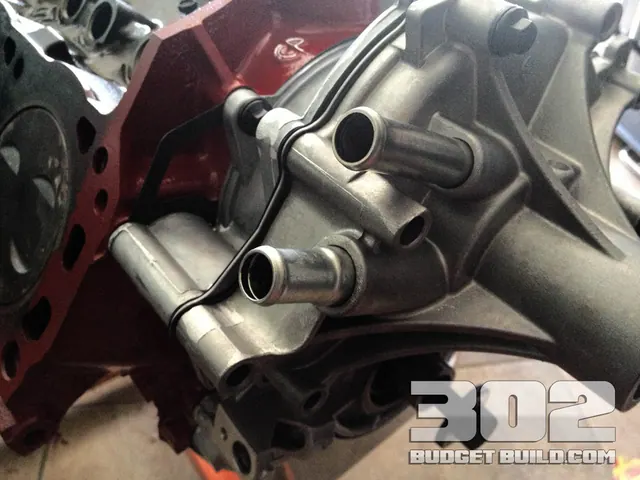

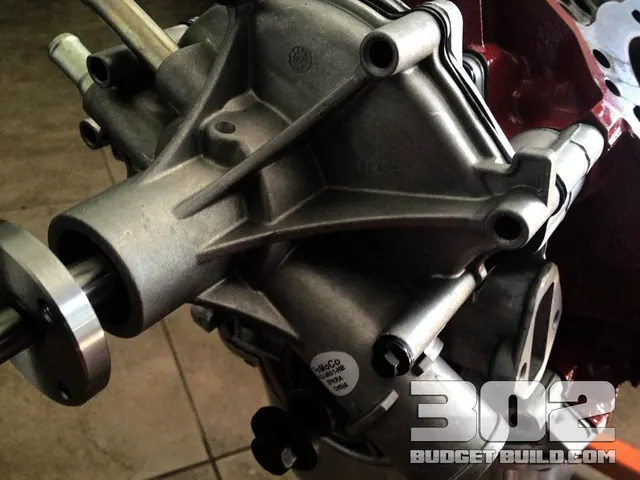

Water pump mounted to timing cover with ARP bolts. Gaskets are installed.

Water pump mounted to timing cover with ARP bolts. Gaskets are installed.



Water pump mounted to timing cover with ARP bolts. Gaskets are installed.

Water pump mounted to timing cover with ARP bolts. Gaskets are installed.



Water pump mounted to timing cover with ARP bolts. Gaskets are installed.

Water pump mounted to timing cover with ARP bolts. Gaskets are installed.
